Description:

The new and improved SA325 is the ideal sub-compact tractor choice for versatility and flexibility. Use more implements and accessories than ever before, with the comfort of an operator’s platform that was designed with you in mind. Every instrument and control is at your fingertips, so you can enjoy the power and precision of Yanmar’s famously reliable three-cylinder, liquid-cooled diesel engine and our unique combination of horsepower and fuel efficiency.

Features:

• Differential lock
• 12V outlet standard
• 4WD selector
• Smooth, hydraulic power steering
• Electro hydro independent PTO with one-touch on/off
• Front-end loader capacity + quick hitch
• True position control

Specifications:

Engine

• Brand / Model: YANMAR 3TNV80F
• Type: 3-cylinder, 4-cycle, water-cooled diesel
• Aspiration: Naturally aspirated
• Gross Power: 23.9 hp (17.8 kW)
• PTO Power: 18.1 hp (13.5 kW)
• RPM: 3,200
• Displacement: 77.2 cu in (1.266 L)
• Bore x Stroke: 3.15 x 3.30 in (80 x 84 mm)
• Battery: 540 CCA
• Alternator: 40 amp
• Fuel Tank: 6.1 gal (23.0 L)

Dimensions & Weight

• Wheelbase: 63.0 in (1,600 mm)
• Overall Length: 105.8 in (2,688 mm)
• Overall Width (R4 tires): 54.6 in (1,387 mm)
• Height (ROPS, R4 tires): 85.8 in (2,180 mm)
• Ground Clearance (R4 tires): 8.5 in (215 mm)
• Weight (ROPS, R4 tires): 1,715 lb (778 kg)

Speeds

• Forward: Low 0–5.9 mph (0–9.4 km/h), High 0–12.3 mph (0–19.6 km/h)
• Reverse: Low 0–4.1 mph (0–6.6 km/h), High 0–8.5 mph (0–13.7 km/h)

Drivetrain

• Transmission: Hydrostatic, dual range speeds
• 2WD/4WD: Selectable
• Brakes: Wet disc
• PTO (Rear): 554 rpm @ 3200 engine rpm
• PTO (Mid): 2057 rpm @ 3200 engine rpm

Hydraulics

• Steering Pump Flow: 3.7 gpm (14.1 L/min)
• Implement Pump Flow: 4.3 gpm (16.1 L/min)
• 3-Point Hitch: Limited Category 1
• Lift Capacity @ 24 in: 1,209 lb (548 kg)
• Steering: Hydrostatic power

Tires

• Front R3 Turf: 23x8.50-12 (4PR)
• Front R4 Industrial: 23x8.50-12 (4PR)
• Rear R3 Turf: 33x12.5-16.5 (4PR)
• Rear R4 Industrial: 12-16.5 (10PR)

Implements (Optional)

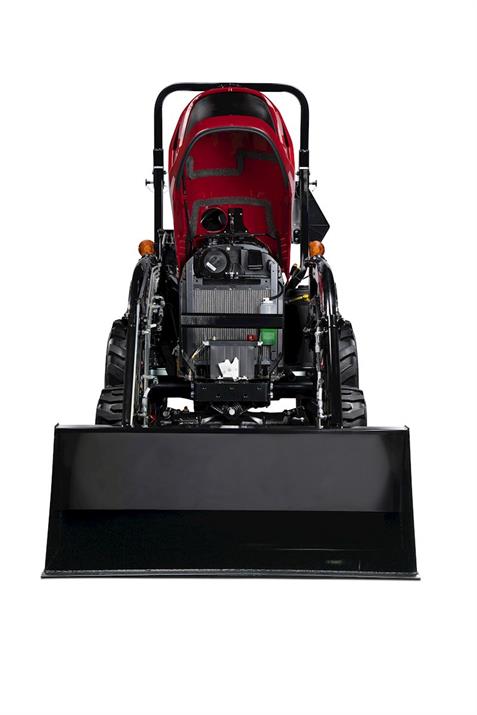

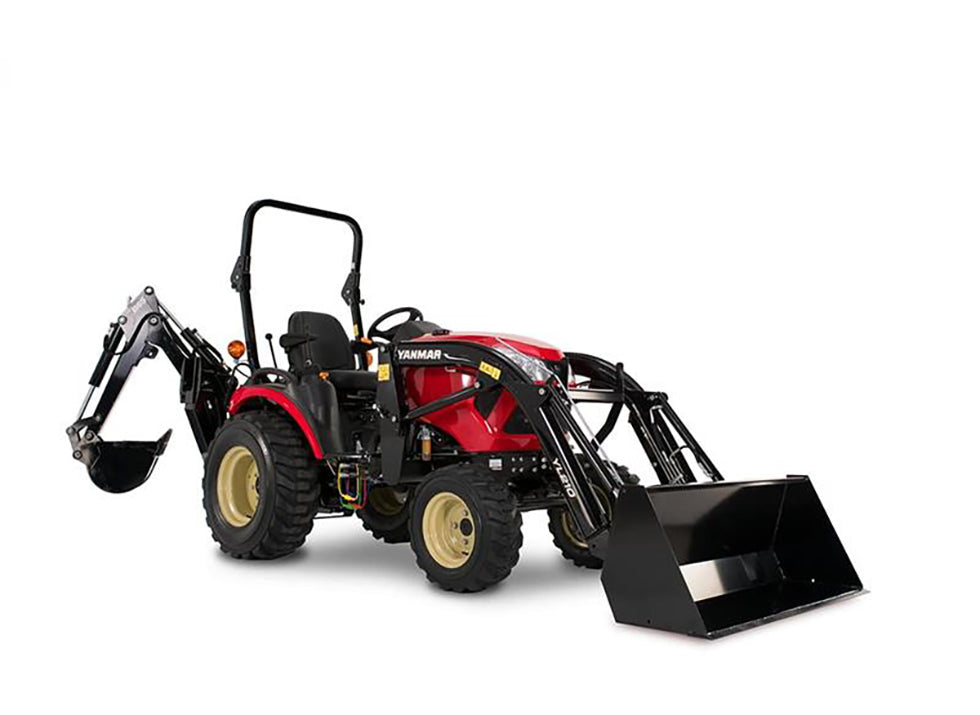

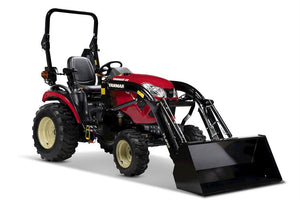

• Loader: YL210 (lift capacity 1,200 lb, breakout force 2,090 lb)

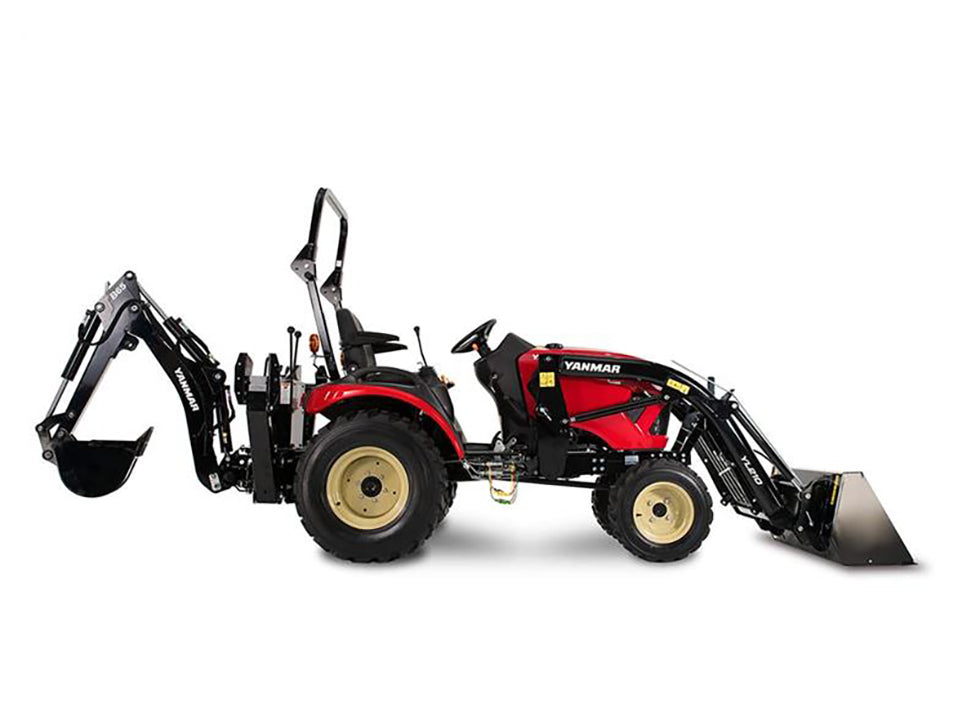

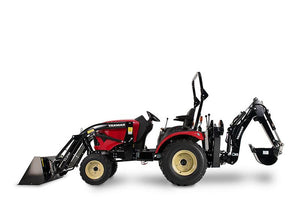

• Backhoe: B65 (dig depth 76.9 in, bucket force 2,800 lb)

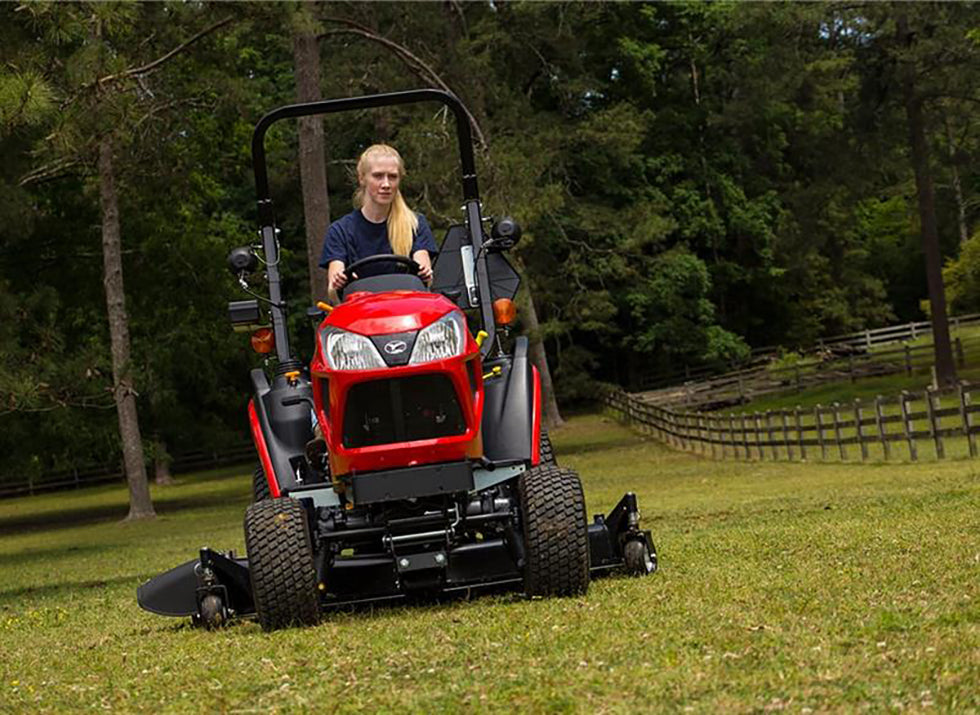

• Mower Deck: 60 in fabricated 10-gauge steel, 3 blades
