Description:

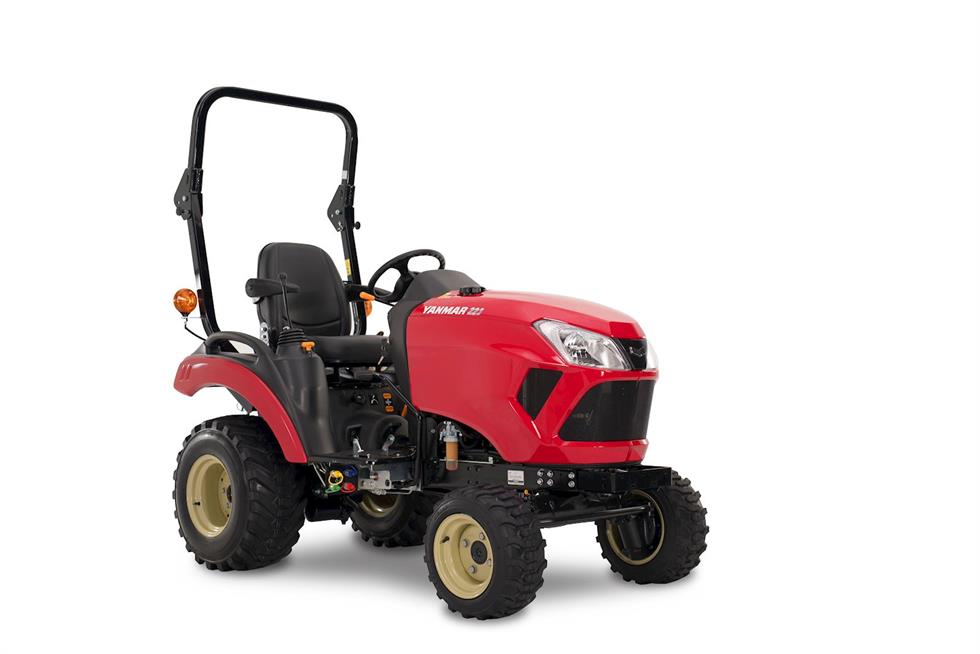

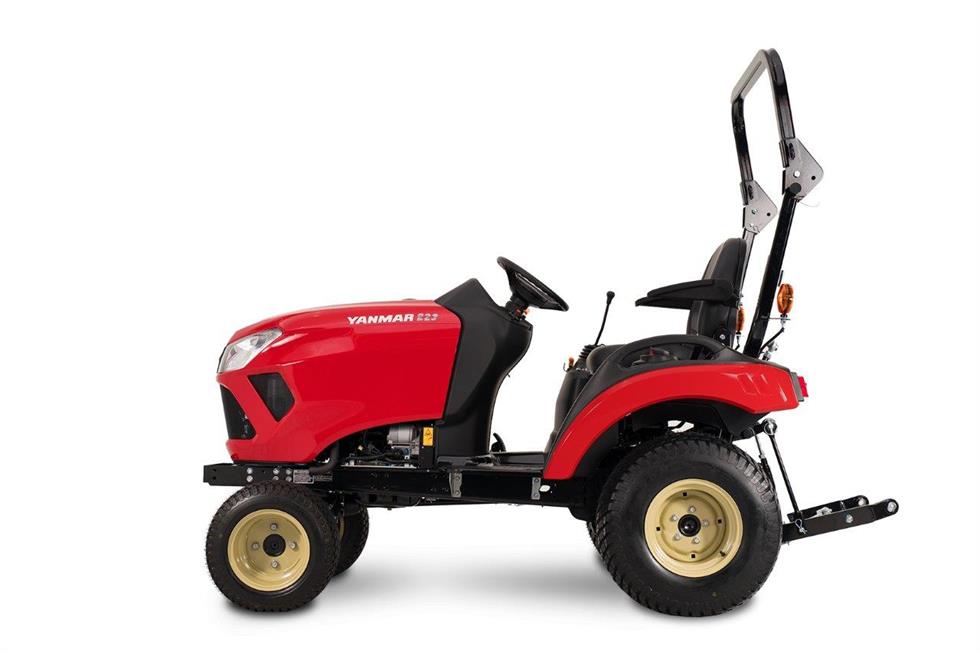

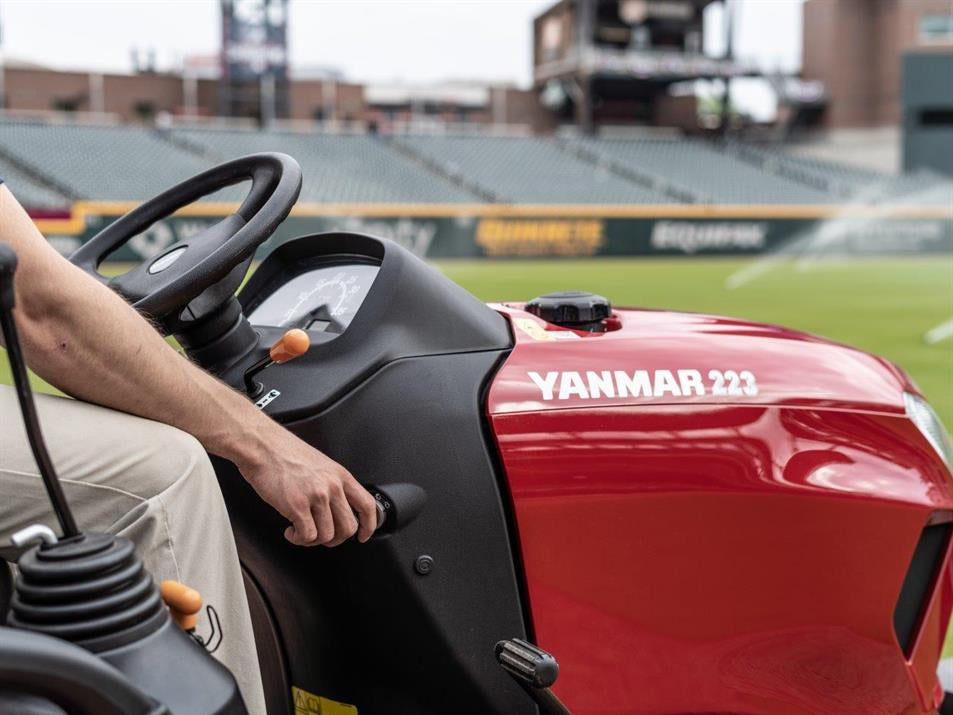

This next-level model of our popular SA series gets more done than ever before, whether you’re working with heavy loads or on difficult terrain. The SA223 is packed with performance upgrades like dual-range speeds, standard differential lock, and 3-point hitch position control. Powered by our legendary 3-cylinder, liquid-cooled diesel engine, Yanmar’s SA223 always shows up ready to work -- so you can get back to doing what you love.

Features:

• Standard Differential Lock
• True Position Control
• 4WD Selector
• Dual Range HST Transmission

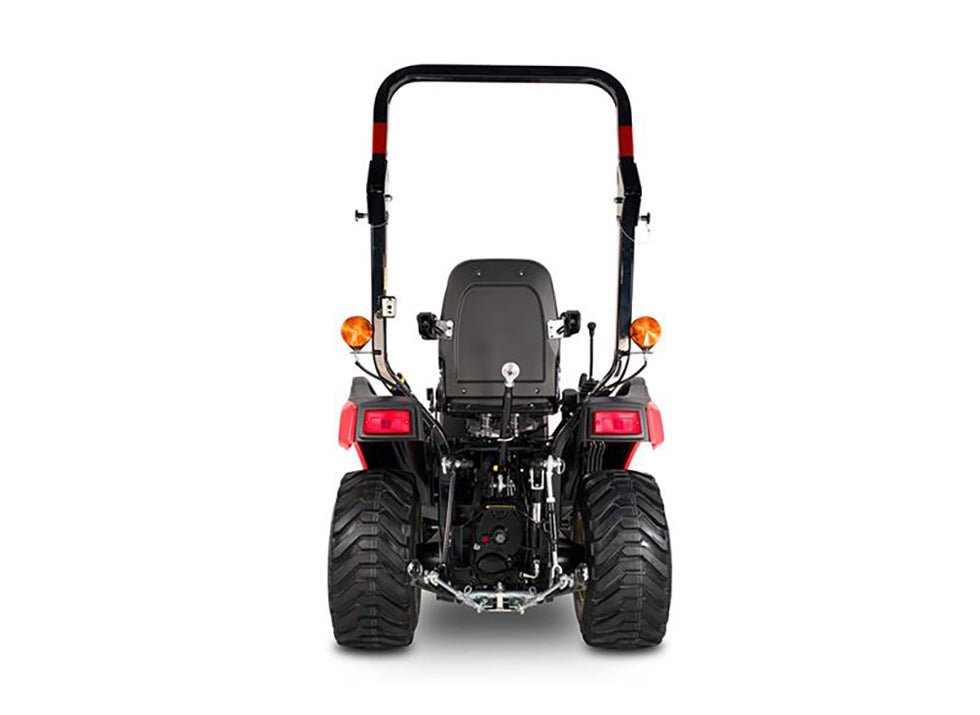

• Limited (CAT1) 3-Point Hitch

Specifications:

Engine

• Maker / Model: YANMAR 3TNM74F
• Type: 3-cyl, 4-cycle, liquid-cooled diesel
• Aspiration: Naturally aspirated
• Gross Power: 21.5 hp (16.0 kW)
• PTO Power: 15.6 hp (11.6 kW)
• RPM: 3,200
• Displacement: 60.6 cu in (0.993 L)
• Bore x Stroke: 2.92 x 3.03 in (74 x 77 mm)
• Battery: 540 CCA
• Alternator: 40 amp
• Fuel Tank: 6.1 gal (23.0 L)

Dimensions & Weight

• Wheelbase: 57.9 in (1,400 mm)
• Overall Length (R4): 102.1 in (2,594 mm)
• Overall Width (R4): 47.3 in (1,200 mm)
• Height (ROPS, R4): 82.3 in (2,090 mm)
• Steering Wheel Height (R4): 51.1 in (1,299 mm)
• Folded ROPS Height: 66.3 in (1,683 mm)
• Ground Clearance (R4): 6.4 in (163 mm)
• Weight (ROPS, R4): 1,537 lb (697 kg)

Speeds (R4 tires)

• Forward: Low 0–4.55 mph (0–7.3 km/h), High 0–6.3 mph (0–15.2 km/h)
• Reverse: Low 0–3.2 mph (0–5.1 km/h), High 0–6.6 mph (≈10.6 km/h)

Drivetrain

• Transmission: Hydrostatic, 2 ranges
• Drive: 2WD/4WD selectable
• Brakes: Wet disc
• Rear PTO: 554 rpm @ 3,200 engine rpm
• Mid PTO: 2057 rpm @ 3,200 engine rpm

Hydraulics

• Steering Pump Flow: 3.7 gpm (14.1 L/min)
• Implement Pump Flow: 4.3 gpm (16.1 L/min)
• 3-Point Hitch: Limited Category 1
• Control: Select control, open center
• Lift Capacity @ 24 in: 660 lb (300 kg)
• Steering: Hydrostatic power

Tires

• Front Turf (R3): 18x8.50-10 (4PR)
• Front Industrial (R4): 18x8.50-10 (6PR)
• Rear Turf (R3): 26x12.0-12 (4PR)
• Rear Industrial (R4): 26x12.0-12 (4PR)

Implements (Optional)

• Backhoe (B65):
• Digging Depth: 78.4 in (1,991 mm)
• Bucket Digging Force: 2,800 lb (1,270 kg)
• Dipperstick Force: 1,590 lb (721 kg)
• Weight: 677 lb (307 kg)

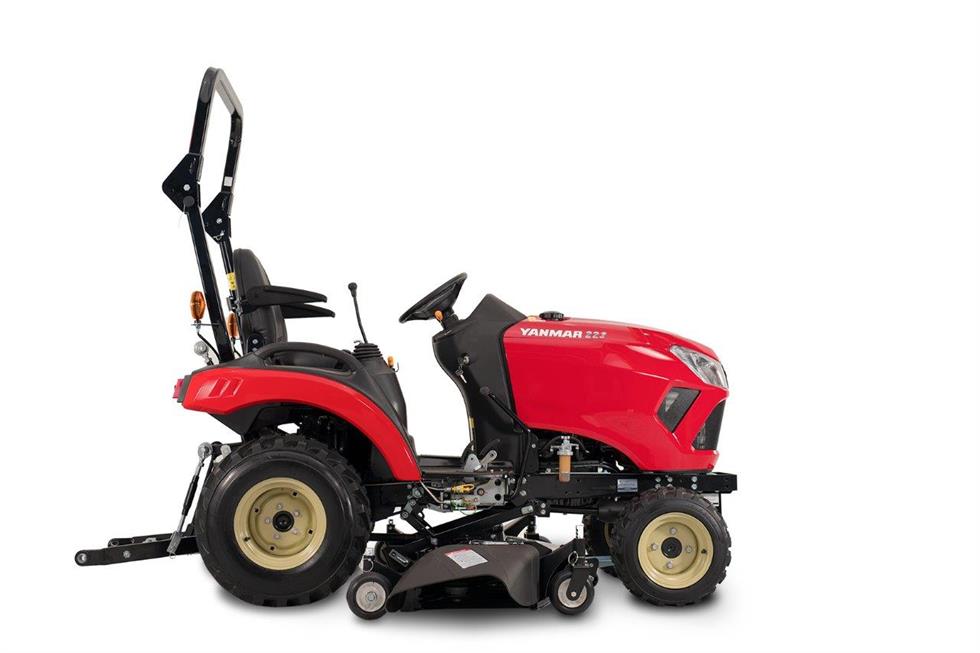

• Mower Deck (M60):
• Cutting Width: 60 in (1,524 mm), side discharge
• Shell: Stamped steel
• Blades: 3
• Weight: 283.8 lb (129 kg)

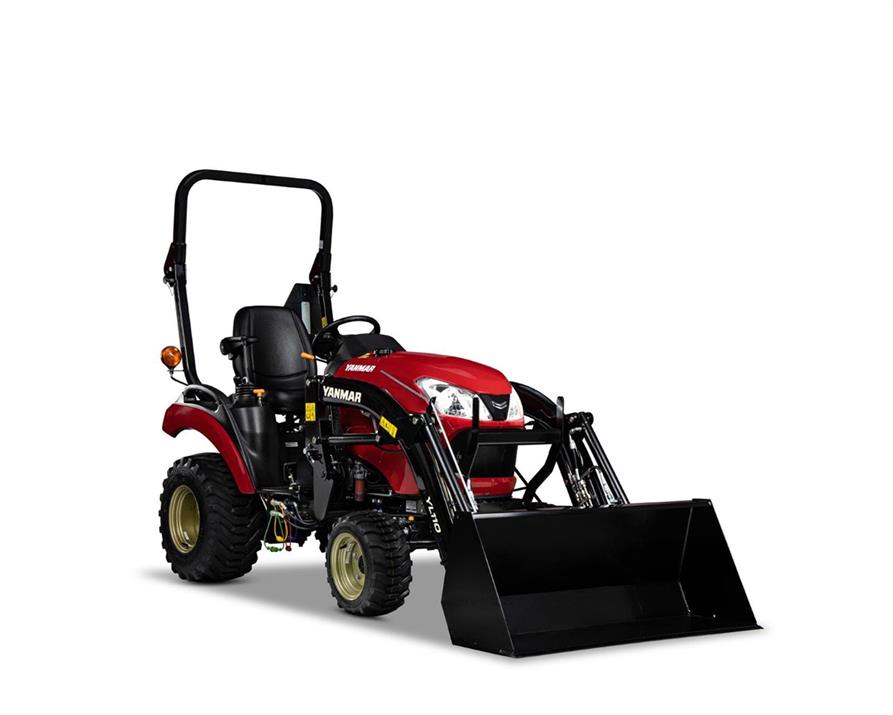

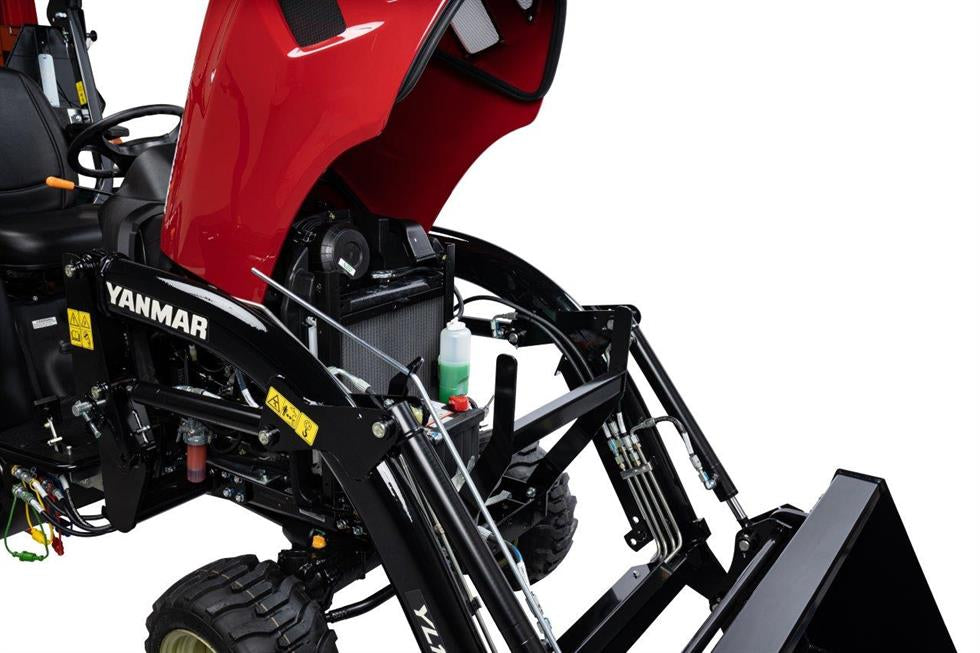

• Loader (YL110):
• Lift Height @ Pin: 71 in (1,800 mm)
• Lift Capacity @ Pin: 825 lb (375 kg)
• Breakout Force: 1,342 lb (610 kg)
• Bucket Width: 48 in (1,219 mm)
• Bucket Capacity: 5.3 ft³ (0.15 m³)
• Loader Weight w/ Bucket: 358 lb (162 kg)

Warranty

• Tractor (private use): 24 months or 2,000 hrs
• Powertrain (engine/transmission): 10 yrs or 3,000 hrs
• Attachments: 1 year limited
