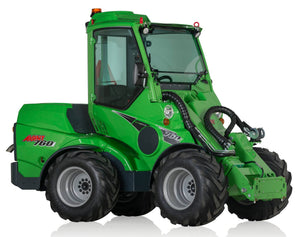

The Avant M760 760i Articulated Compact Loader is a high-performance multi-purpose loader designed for demanding construction, landscaping, property maintenance, agriculture, and material-handling applications. Powered by a 56 HP Rehlko/Kohler 3-cylinder Stage V diesel engine, it combines high hydraulic flow, strong lifting capacity, hydrostatic 4WD, and a telescopic boom for excellent versatility. The 760i can operate a wide range of hydraulic attachments while maintaining a compact footprint and high travel speed.
Key Specifications
• Model: M760 / 760i
• Type: Articulated Compact Loader
• Engine: Rehlko/Kohler KDI-TCR 1903 Stage V 3-Cylinder Diesel
• Engine Power: 56 HP (42 kW)
• Maximum Torque: 220 Nm
• Drive System: Hydrostatic 4WD with Avant Optidrive®
• Transmission: Hydrostatic
• Maximum Speed: 16.2 mph (26 km/h)
• Lift Capacity: 3,086 lb (1,400 kg)
• Maximum Lift Height: 122 in (3,100 mm)
• Auxiliary Hydraulic Flow: 21.1 GPM (80 L/min)
• Auxiliary Hydraulic Pressure: 3,260 PSI (225 bar)
• Standard Tire Size: 400/50-15
• Turning Radius: 49.2 in inside / 105.3 in outside
• Overall Width: 57.1 in (1,450 mm)
• Overall Length: 120.5 in (3,060 mm)
• Overall Height: 83.1 in (2,110 mm)
• Telescope Boom Extension: 27.6 in (700 mm)
• Fuel Type: Diesel
• Applications: Construction, Landscaping, Agriculture, Snow Removal, Material Handling, Grounds Maintenance, and Attachment Work
• Operating Weight: Approximately 4,630 lb (2,100 kg) with ROPS
Features
• Powerful 56 HP Stage V diesel engine provides strong performance for demanding applications.
• Hydrostatic 4WD with Avant Optidrive® delivers excellent traction and maneuverability.
• High-flow auxiliary hydraulics support a broad range of demanding hydraulic attachments.
• Telescopic boom provides additional reach and lifting versatility.
• 3,100 mm maximum lift height makes it suitable for loading and material-handling tasks.
• Compact articulated design provides a tight turning radius for confined work areas.
• Two drive-speed ranges allow efficient operation during both working and transport applications.
• Multiple cab options are available, including enclosed cab configurations with heating and air conditioning.
• Designed to operate a wide variety of Avant attachments for year-round versatility.
